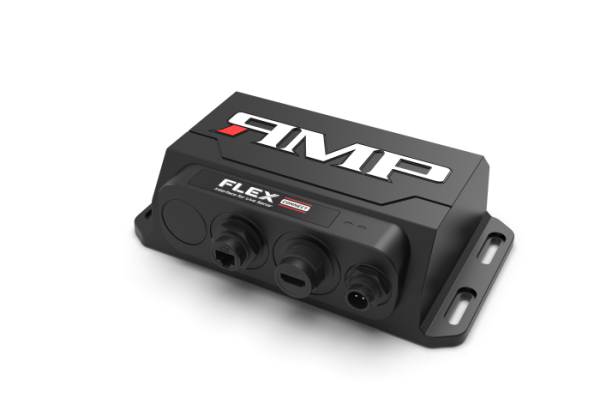

RMP Connect Module

FLEX Connect – Expand Your Screen Size!



Take your Flex-19 experience to the next level with the all-new, patent-pending FLEX Connect! This innovative feature allows you to mirror your Lowrance HDS display onto an RMP FLEX-19 unit, giving you a bigger, clearer view for enhanced live sonar performance.

Bigger is Better!

With FLEX Connect, you can seamlessly pair your Flex-19 with any 9” or larger Lowrance HDS unit, ensuring greater visibility and control on the water.

Compatible Lowrance HDS Units:

• HDS Carbon – 9, 12* & 16
• HDS Live – 9, 12* & 16
• HDS Pro – 9, 10, 12* & 16

(*Note: Certain models may have screen limitations.)

Enhance your fishing and navigation experience with FLEX Connect – because bigger screens mean better results!



What’s in the Box

• FLEX Connect Module
• HDMI Cable (Length: 6M)
• DC Power Cable (Length: 1.8M)
• Ethernet Cable (Length: 4.5M)
• USB Cable (Length: 8M)



Input & Output Ports

Input:

• Power: DC in ×1
• Ethernet Port: ×1

Output:

• HDMI: ×1

Power Requirements

• Input Voltage: DC 10V to 28V

Physical Specifications

• Dimensions: 218.35 × 125.0 × 62.0 mm (with RMP logo)
• Weight: 523g ± 10g

LED Indicators

• Power Status: (Outer Red Light)
  • On: Device is powered on and functioning normally.
  • Off: Device is powered off or not connected.
• Operational Status: (Inner Green Light)
  • On: Network and HDMI are connected.
  • Flickering: Network is active.
  • Off: No Ethernet cable detected.



Features & Capabilities

• Input Format Support: CAT.6 RJ45 LAN cable
• Output Format Support: Resolution up to 1080P (1920×1080)
• Video Decoder: H.264
• Compatibility: Compatible with Navico HDS Pro & HDS Live series
• Management Capability: System updates via RJ45 Ethernet


Environmental Durability



• Operating Temperature: -20℃ to +75℃ (-4℉ to +170℉)
• Storage Temperature: -25℃ to +80℃ (-13℉ to +176℉)
• IP Rating: All-around IP67 (Water & dust resistant)



Compliance & Certifications

EMC Compliance:

• EU: IEC60945
• US/CA: FCC 15B + IEC 003IT



Warranty:

2 years warranty
